Chipset and logic partner

Synaptics

Synaptics logo

Synaptics is a publicly owned San Jose, California-based developer of human interface (HMI) hardware and software, including touchpads for computer laptops; touch, display driver, and fingerprint biometrics technology for smartphones; and touch, AI-enhanced video, and far-field voice technology for smart home devices and automotives.

Micron Memory Support for Synaptics Platforms:
Download the compatibility guide
View the flipbook

Micron/Synaptics-related information

Micron and Synaptics offer complete memory solutions that are used in Consumer applications like Set top boxes, Over-the-top streaming devices, Soundbars, Cameras, Smart displays, Smart speakers etc.

Micron products that are qualified on Synaptics' platform include: DRAMLPDRAMNAND flashNOR flash and e.MMC.

Synaptics solutions for Micron memory

VS680 EVK

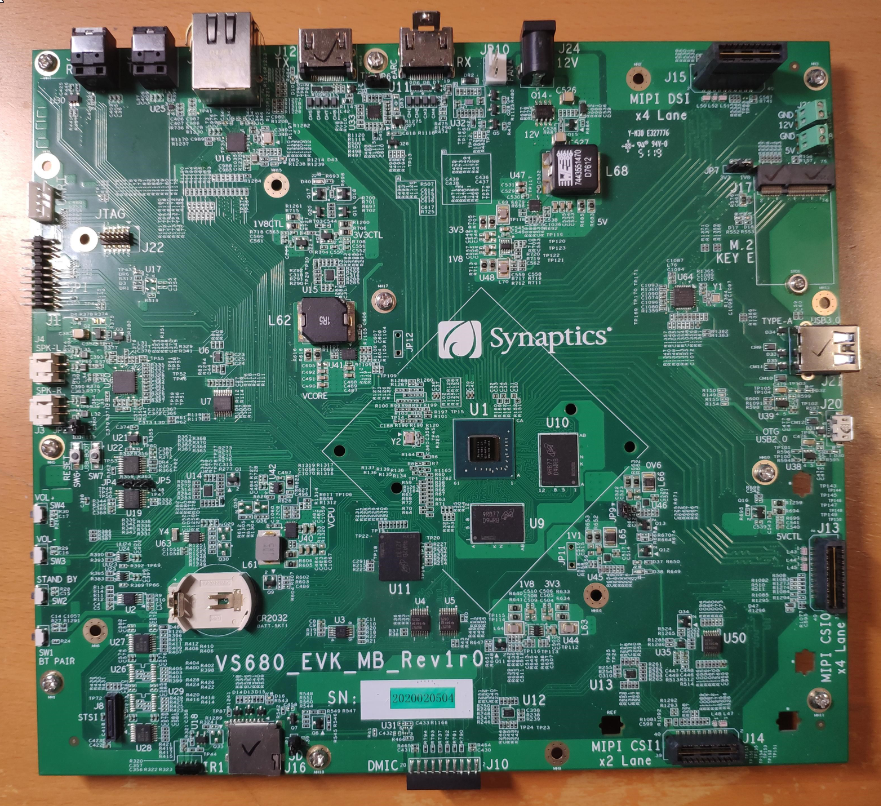

VS680 Synaptics board
Industrial Development Kit
with Micron Qualified Memory
Part NumberDescription
VS680MTFC16GAPALBH16GB v5.1 eMMC
MTFC8GAKAJCN-1M WT8GB v5.0 eMMC
MT53E256M32D2D2-0538Gbit 3733 LPDDR4X
MT53E384M32D2DS-05312Gbit 3733 LPDDR4X

VS640 EVK

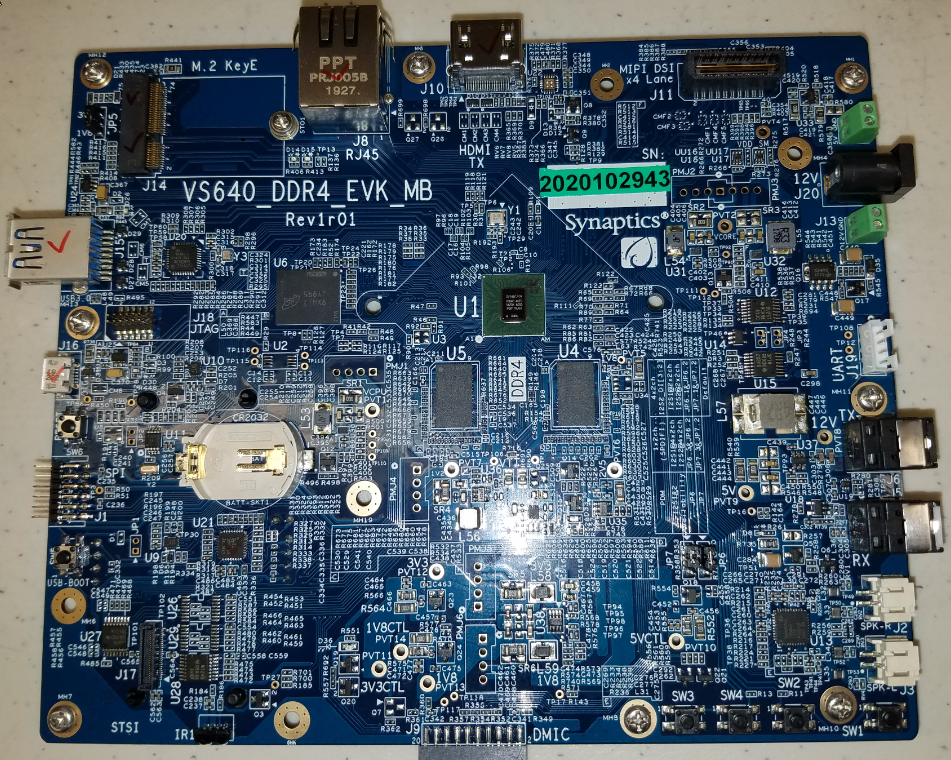

VS640 Synaptics board
Industrial Development Kit
with Micron Qualified Memory
Part NumberDescription
VS640MTFC16GAPALBH16GB v5.1 eMMC
MTFC8GAKAJCN-1M WT8GB v5.0 eMMC
MT40A512M16LY-062E8Gbit 3200 DDR4 (Z11B)
MT40A512M16TB-062E :J8Gbit 3200 DDR4 (Z21C)
MT40A512M16TB-062E ES:R8Gbit 3200 DDR4 (Z41C)
MT53D512M32D2DS-053 WT16Gbit 3733 LPDDR4X
MT53E768M32D4DE-046 WT:E24Gbit 4266 LPDDR4X
